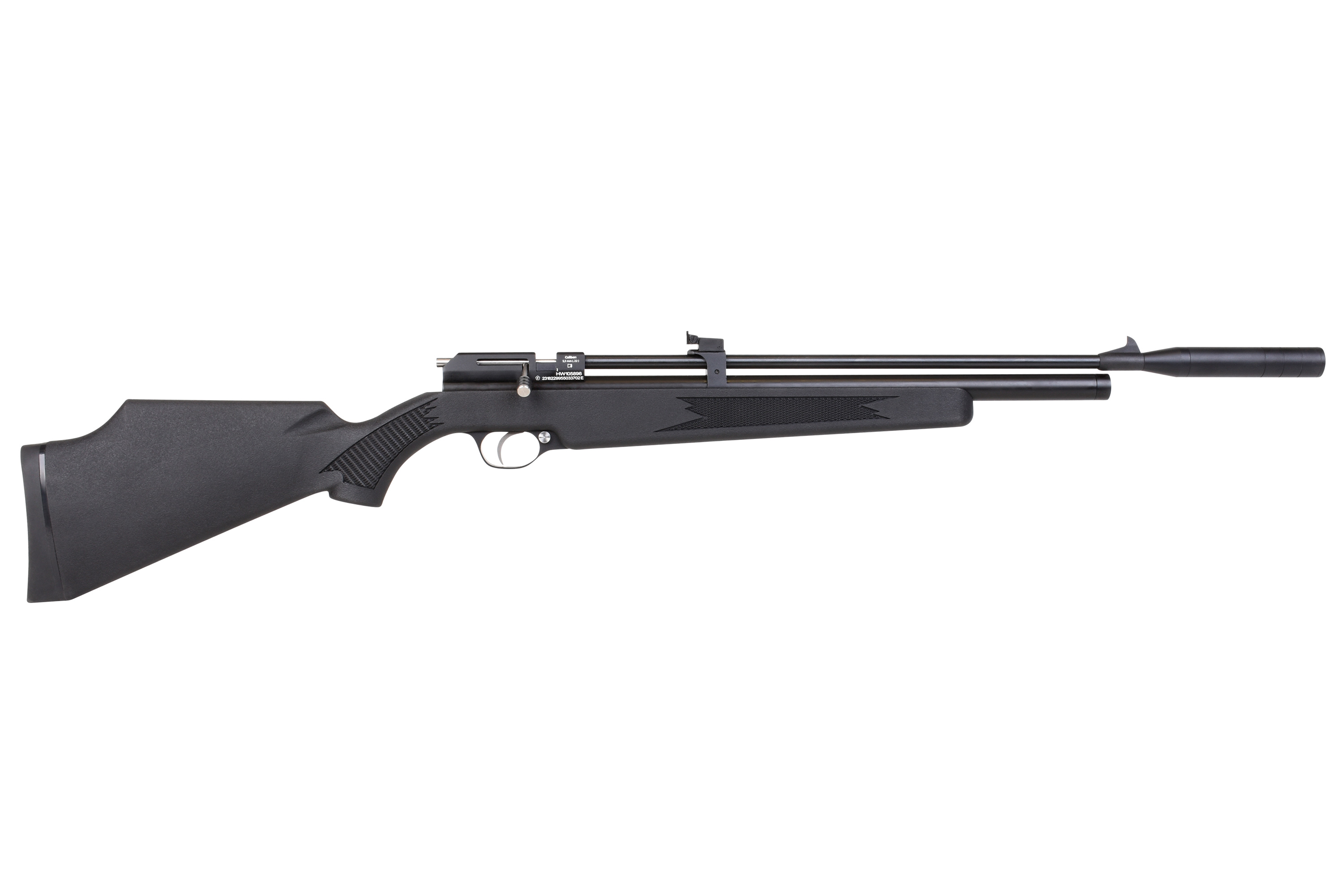

DIANA stormrider black
Product information "DIANA stormrider black"
DIANA PCP air rifle with integrated regulator. The rifle can be used in single-shot mode as well as with the 9 shot drum magazine supplied. Maximum fillling pressure is at 200 bar.
The model has a milled rail, a silencer, an adjustable mircometic sight, a rubberized butt plate and a manual safety. Diabolos up to 8.6mm can be fitted in the magazine supplied.
- PCP technology
- Single shot & 9 round drum magazine
- Integrated regulator
- DIT - DIANA Improved Trigger

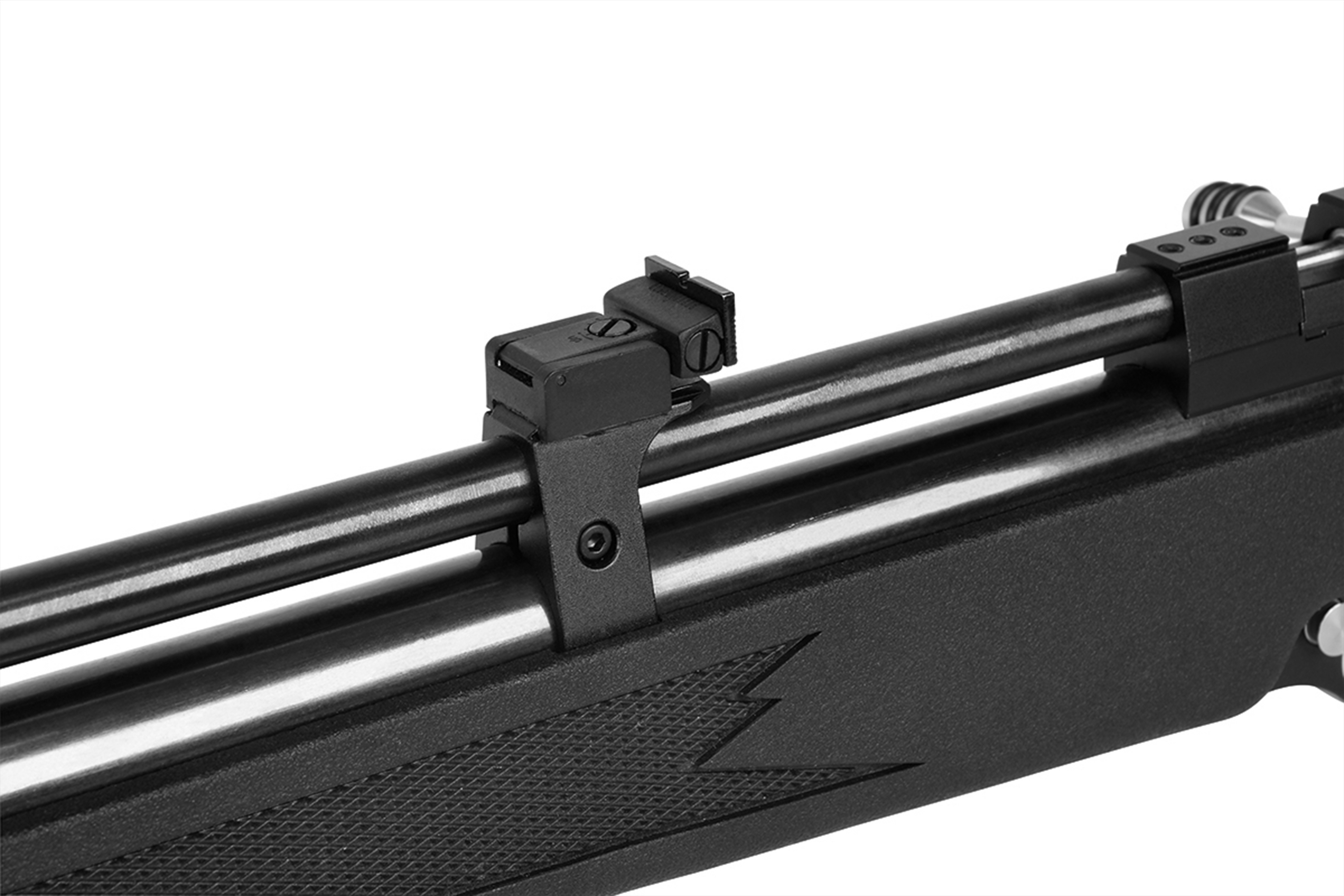

- Adjustable micrometic sight

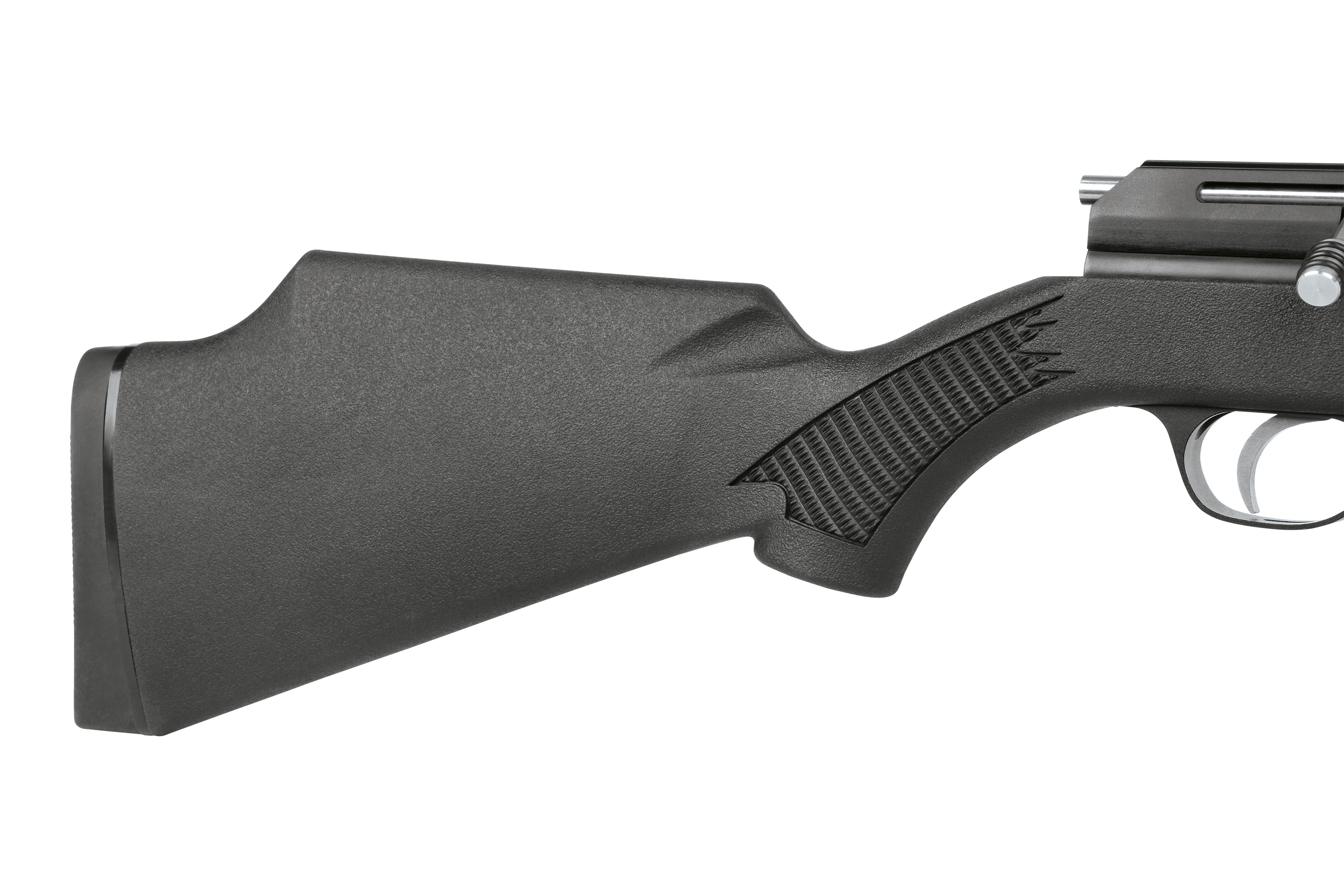

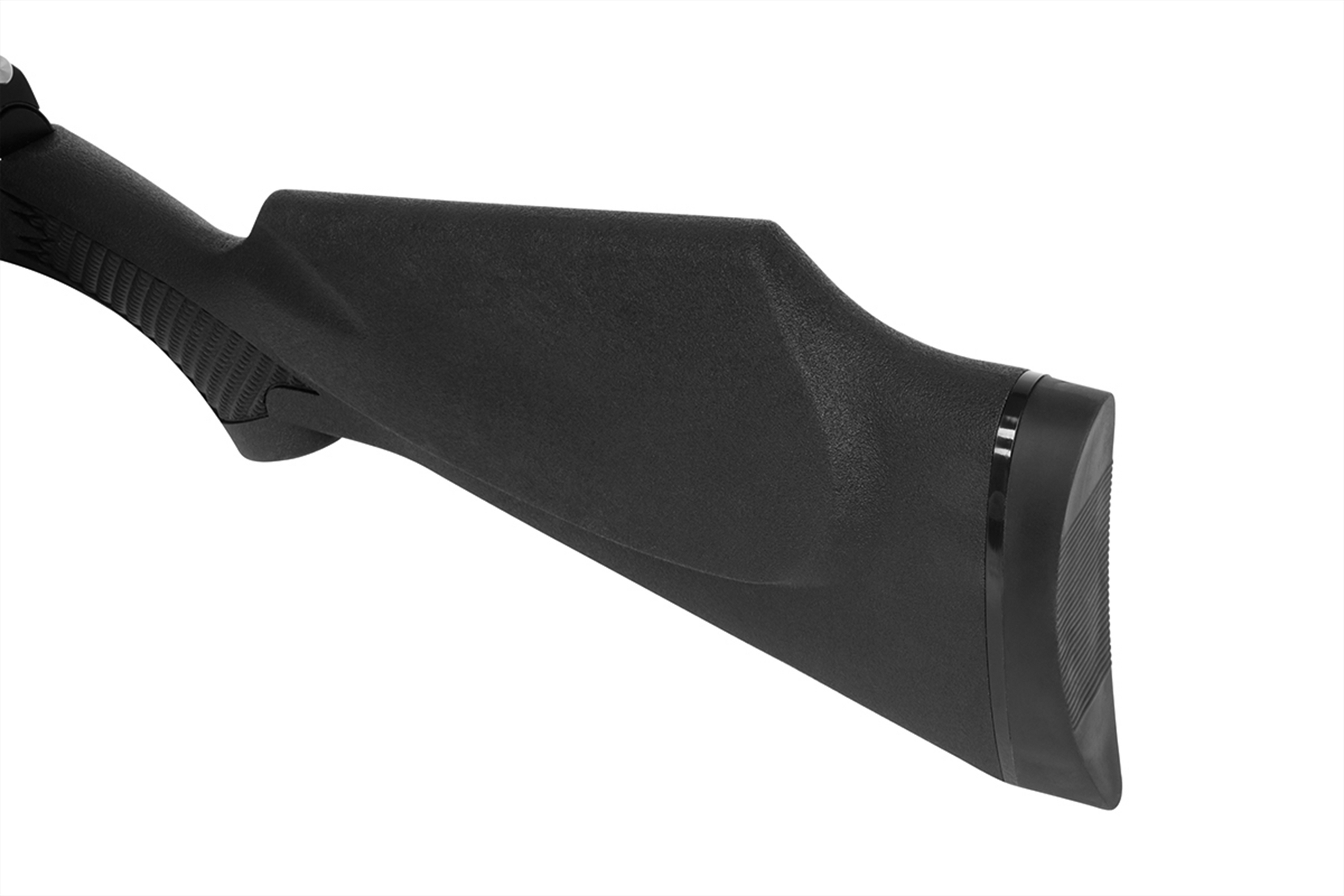

- Rubberized butt plate
- Tank volume 100 ml
- Quick-Fill nozzle
| Barrel length: | 480 mm |
|---|---|
| Barrel type: | rifled barrel |
| Energy: | 27 J. (20 ft.lbs) | 35 J. (26 ft.lbs) |
| Length: | 1.100 mm |
| Max. filling pressure: | 200 bar (2900 PSI) |
| Safety: | manual |
| Stock material: | Plastic |
| System: | Pressluft |
| Velocity: | 320 m/s (1050 fps) | 290 m/s (950 fps) |
| Weight: | 2.200 g |
| Caliber: | 4,5 mm (.177) | 5,5 mm (.22) |
| Ammunition type: | Pellets |
| Magazine capacity: | 9 Schuss | 7 Schuss |
| Cartridge volume: | 100 ml |
| Trigger: | DIT - DIANA Improved Trigger |
